DynaGreen® / DynaShear Gaskets

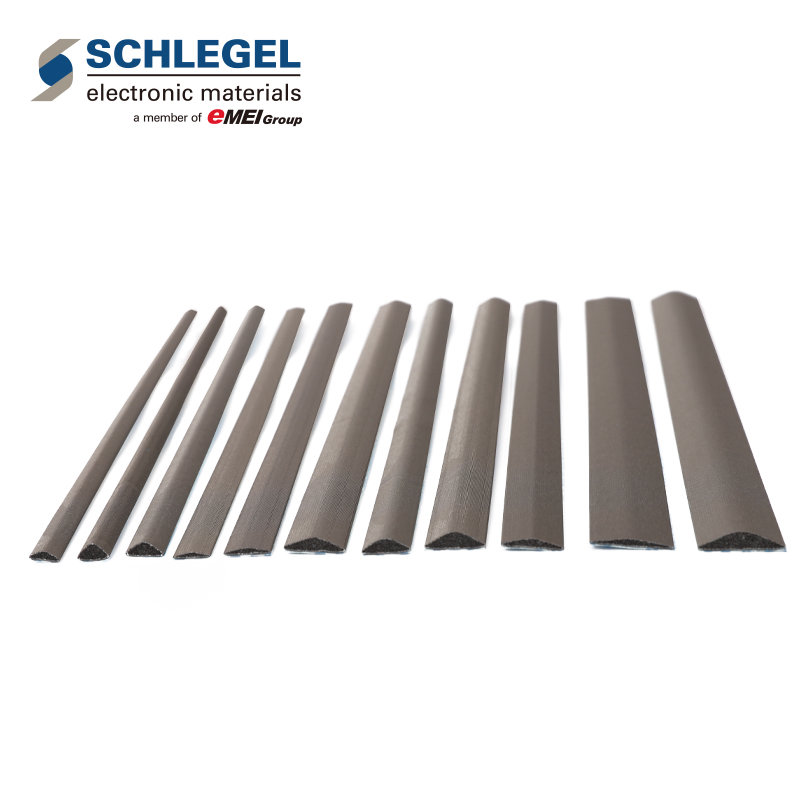

Schlegel Electronic Materials, Inc. introduces DynaGreen® / DynaShear: an innovative EMI shielding gasket family for the shielding of modules in card/cages environment that is able to offer superior features over metal fingerstocks and current Fabric-Over-Foam gaskets. DynaGreen® / DynaShear utilizes the, now famous and efficient, bump technology. DynaGreen® is a halogen-free version of DynaShear which is in compliance with IEC 61249-2-21 (<=900 ppm Bromine and 1500 ppm max for both).
DynaGreen® / DynaShear Currently Features:
-Excellent compression load/deflection ratio due to low memory ultra-soft foam formulation.
-High level of shielding effectiveness even when submitted to large compression variations.
-Highly flexible abrasion resistant conductive fabrics.
| Height Width | 1.5mm | 2.0mm | 2.3mm | 2.7mm | 3.0mm | 3.3mm | 3.5mm | 3.8mm |
| 6mm | EY37n2Zxxxx(HF) | EK97n2Zxxxx(HF) | EQ67n2Zxxxx(HF) | EQ77n2Zxxxx(HF) | E2S7n2Zxxxx(HF) | EQ87n2Zxxxx(HF) | E2W7n2Zxxxx(HF) | EQ97n2Zxxxx(HF) |
| 8mm | EY47n2Zxxxx(HF) | EV37n2Zxxxx(HF) | EP17n2Zxxxx(HF) | EU87n2Zxxxx(HF) | E2T7n2Zxxxx(HF) | EV67n2Zxxxx(HF) | E2X7n2Zxxxx(HF) | EV77n2Zxxxx(HF) |
| 10mm | EY57n2Zxxxx(HF) | EJ87n2Zxxxx(HF) | EJ97n2Zxxxx(HF) | EK17n2Zxxxx(HF) | E2P7n2Zxxxx(HF) | EK27n2Zxxxx(HF) | E2R7n2Zxxxx(HF) | EK37n2Zxxxx(HF) |
| 12.7mm | EY27n2Zxxxx(HF) | EK47n2Zxxxx(HF) | EK57n2Zxxxx(HF) | EK67n2Zxxxx(HF) | E2U7n2Zxxxx(HF) | EK77n2Zxxxx(HF) | E2Y7n2Zxxxx(HF) | EK87n2Zxxxx(HF) |
| 17mm | EY67n2Zxxxx(HF) | EY77n2Zxxxx(HF) | EV87n2Zxxxx(HF) | EY87n2Zxxxx(HF) | E2V7n2Zxxxx(HF) | EY97n2Zxxxx(HF) | E3B7n2Zxxxx(HF) | E1A7n2Zxxxx(HF) |
n: specifies the fabric type (3: NiCu-C70, 4:NiCu-C12) xxxx:specifies length in the form xx.xx”
Standard parts supplied with wide release liner, PSA:2 strips of adhesive is standard
Standard Height for uptaped and uncompressed parts.
All DynaGreen® gaskets have the identical physical and electronic characteristics as DynaShear. DynaGreen® has suffix “HF”. HF : specifies Halogen Free.
eg. : DynaShear: EY37n2Zxxxx
DynaGreen®: EY37n2ZxxxxHF
